Description

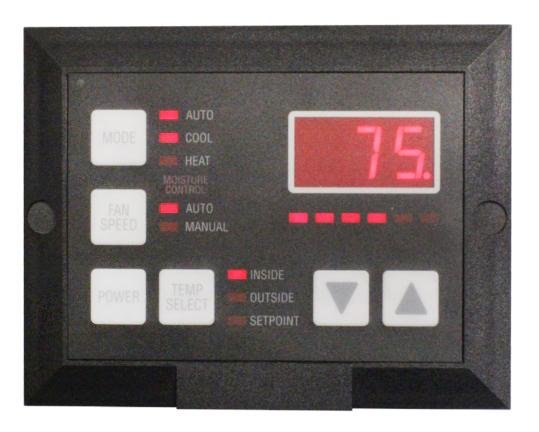

FX Maxx AC Display

The FX-Maxx Control Display is Micro-Air’s long-standing cabin control standard for both self-contained and split DX (Direct Expansion) systems and for CW (Chilled Water) air handlers.

The FX-Maxx Control is designed for use with all direct expansion, reverse cycle air conditioning systems. FX-Maxx has a universal power supply that operates on 115, 230, 50 or 60 Hz AC power. FX-Maxx includes the following standard and optional features:

Standard Features  :

• User friendly 6 button display panel requires no manual for basic operation
• Five volt logic and micro controller located in the display
• 3 – digit 7 – segment display panel indicates °Fahrenheit or °Celsius
• Paintable Face Plate Cover with recess for matching wall covering insert
• Automatic fan speed reduction as set point is approached
• Six [6] programmable manual fan speeds
• 16 programmable parameters for custom installations
• AC voltmeter to protect valuable electrical components
• High and low Freon pressure sensor inputs
• Moisture Mode for controlling relative humidity
• De-Icing cycle to prevent evaporator coil icing
• Programmable multiple compressor staging delays
• Universal AC power supply
• Nonvolatile memory retains settings without batteries
• Programmable display brightness control for night use

Features

• Identical look and wall cutout to the original ECU-Maxx and AH-Maxx Control Displays.
• Easy-to-read and bright 7-segment LED display
• Clear, individual mode, fault and fan speed indicator LEDs
• Simple 6-button interface for operation and programming
• Built-in inside temperature sensor
• 8-pin RJ-45 Display Interface. Legacy SDL interface also available.
• Available in black or white
