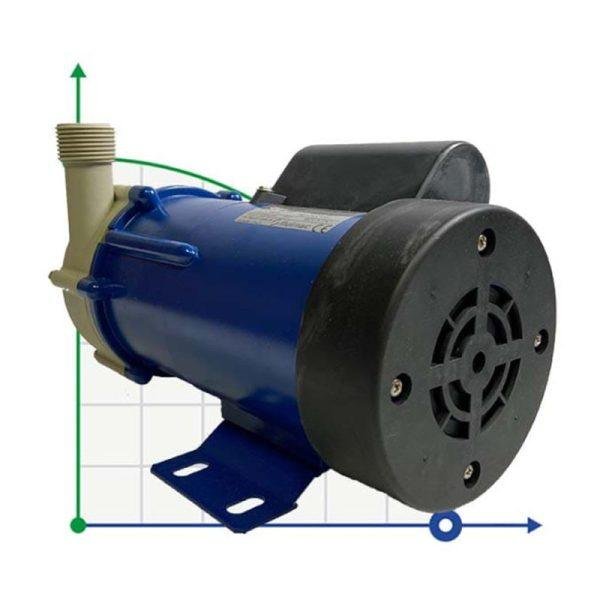

CLIMMA TMB 65 WR V N1 B EN1 Magnetic Centrifugal Pump

The CLIMMA TMB 65 WR V N1 B EN1 is a high-efficiency magnetic centrifugal pump, specifically designed for marine air conditioning and water circulation applications. Manufactured by CLIMMA, a leading brand in marine climate control systems, this pump offers reliable performance, durability, and silent operation, making it ideal for use on yachts, sailboats, and other marine environments.

This model is part of the TMB series, featuring a magnetic drive design that eliminates the need for traditional shaft seals, ensuring leak-free operation and significantly reducing wear and maintenance. With a maximum head of 5.8 meters and a maximum flow rate of 3.7 m³/h, the pump is capable of handling demanding cooling and circulation tasks with ease. The nominal operating parameters are also highly efficient, with a nominal head of 4.2 meters and a nominal flow rate of 2 m³/h, making it a dependable choice for continuous-duty cycles.

Constructed from polypropylene (PP), the pump is corrosion-resistant, lightweight, and well-suited for harsh marine conditions. Both the inlet and outlet connections are sized at 1 inch, allowing for seamless integration with standard marine plumbing systems. The pump is powered by a single-phase 220V, 50 Hz power supply, making it compatible with most on-board electrical systems.

The CLIMMA TMB 65 WR V N1 B EN1 is ideal for circulating seawater through air conditioning condensers, water-cooled chillers, or other onboard cooling systems. Its compact design and quiet operation make it particularly suitable for installations where space and noise control are critical.

Key Specifications:

• Producer: CLIMMA

• Model: TMB 65 WR V N1 B EN1

• Max Head: 5.8 meters

• Max Flow Rate: 3.7 m³/h

• Nominal Head: 4.2 meters

• Nominal Flow Rate: 2 m³/h

• Pipe Size: 1″ inlet and outlet

• Material: Polypropylene (PP)

• Power Supply: 1×220V, 50 Hz

Choose CLIMMA TMB 65 WR V N1 B EN1 for a reliable, corrosion-resistant, and maintenance-free pump solution tailored for marine comfort systems.
